Canon EOS C50 Full-Frame Cinema Camera (Canon RF)
Introduction
The Canon EOS C50 Full-Frame Cinema Camera (RF Mount) is a compact yet powerful professional filmmaking tool designed for modern content creators and cinematographers. Featuring a cutting-edge 7K full-frame CMOS sensor and advanced processing, it delivers exceptional image quality in a lightweight and portable body.
Design and Build

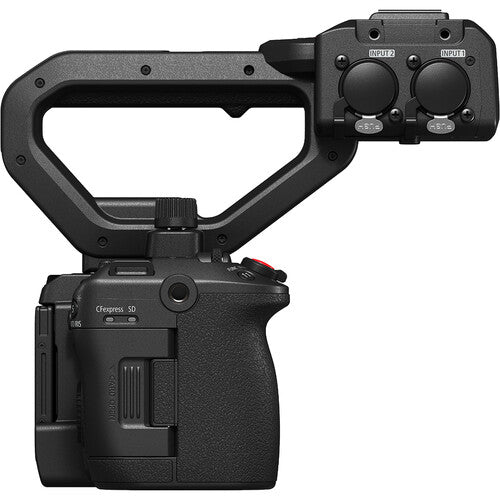

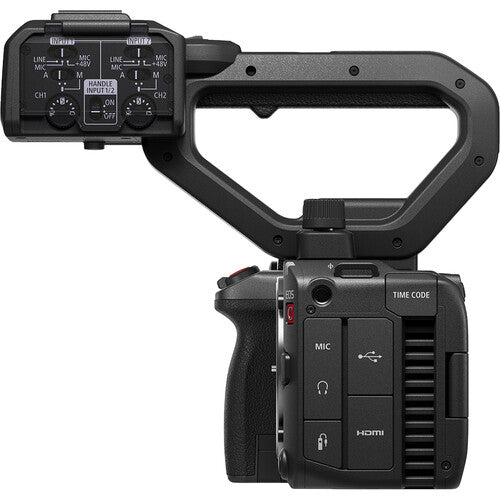

Compact yet robust, the EOS C50 is engineered for both studio and on-location shooting. Its ergonomic design includes a detachable top handle with XLR inputs, offering flexibility for professional audio recording and on-the-go filmmaking.
Image Quality
At its core is a 7K full-frame CMOS sensor paired with the DIGIC DV7 processor, enabling high-resolution video and still capture. The camera supports 7K RAW recording up to 60fps and oversampled 4K video for superior clarity, color depth, and dynamic range.
Recording Capabilities
The EOS C50 supports multiple recording formats, including Cinema RAW Light, XF-AVC, and XF-HEVC. It also features open gate recording, allowing filmmakers to utilize the entire sensor for flexible framing and post-production adjustments.
Autofocus & Performance
Equipped with Dual Pixel CMOS AF II, the camera delivers fast, accurate autofocus with advanced subject tracking. It can detect and track people, animals, and faces across nearly the entire frame, ensuring sharp focus in dynamic shooting conditions.
Connectivity & Workflow
The camera includes professional connectivity options such as HDMI output, USB-C, timecode, and dual card slots (CFexpress and SD). It also supports simultaneous recording and streamlined workflows for faster editing and content delivery.
Ease of Use
Despite its professional capabilities, the C50 is designed with user-friendly controls and intuitive menus. This makes it accessible to both seasoned cinematographers and emerging filmmakers looking to elevate their craft.
Conclusion
The Canon EOS C50 Full-Frame Cinema Camera (Canon RF) is a powerful tool for modern filmmaking. With its full-frame sensor, RF lens compatibility, and advanced video features, it provides the performance and flexibility needed to produce cinematic content at the highest level.
Canon C50 Specs
| Lens Mount |
Canon RF
|
| Lens Communication |
Yes: Cooke /i
|
| Image Sensor |
Full-Frame CMOS
|
| Effective Sensor Resolution |
34.2 Megapixel (7144 x 4790)
|
| Image Stabilization |
No
|
| Built-In ND Filter |
No
|
| Built-In CC Filter |
No
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/16000 to 30 Seconds
|
| Shutter Angle |
11.25 to 360°
|
| ISO/Gain Sensitivity |
Dual Base: 800 / 6400
Native: 100 to 25,600 (100 to 25,600 Extended)
Dual Base: 400 / 3200*
Native: 800 to 51,200 (800 to 102,400 Extended)
*Base ISO Is Dependent on Selected Color Space
|
| Signal-to-Noise Ratio |
Not Specified by Manufacturer
|
| Advertised Dynamic Range |
16 Stops
|
| Exposure Modes |
Auto, Manual
|
Focus
| Focus Mode |
Automatic, Continuous-Servo AF, Manual Focus, One-Shot AF
|
Video Capture
| Internal Recording |
Raw 12-Bit
6960 x 4640 at 24.00/25/29.97/23.98 fps
6960 x 3672 at 23.98/50/24.00/25/29.97/59.94 fps
5036 x 2656 at 23.98/50/24.00/25/29.97/59.94 fps*
2524 x 1332 at 23.98/50/24.00/25/29.97/59.94 fps*
XF-HEVC S 4:2:2/4:2:0 10-Bit
6912 x 4608 at 24.00/25/29.97/23.98 fps
4096 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
2048 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
H.264/MPEG-4/XF-AVC S 4:2:2 10-Bit
4096 x 2160 at 24.00/25/29.97/50/59.94/23.98 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
H.264/MPEG-4/XF-AVC S 4:2:0 8-Bit
4096 x 2160 at 24.00/25/29.97/50/59.94/23.98 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
2048 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
*Sensor Crops During Recording
XF-AVC 4:2:2 10-Bit
4096 x 2160 at 24.00/25/29.97/50/59.94/23.98 fps
3840 x 2160 at 23.98/50/24.00/25/29.97/59.94 fps
2048 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps
|
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
Canon Log 2, Canon Log 3, Hyper Gamma
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
Raw, XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio
XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
XF-AVC S: 2-Channel, 16-Bit at 48 kHz via AAC LC Audio
XF-AVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
|
| IP Streaming |
RTP, RTSP, SRT, UDP
920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)
|
Interface
| Media/Memory Card Slot |
Slot 1: SD/SDHC/SDXC
Slot 2: CFexpress Type B (CFast 2.0) [VPG-400 or Faster Recommended]
|
| Internal Storage |
No
|
| Video I/O |
1x HDMI Output
|
| Audio I/O |
2x XLR 3-Pin Mic/Line Input on Included Handle (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body (Plug-in Power)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
| Power I/O |
1x USB-C
|
| Other I/O |
1x 2.5 mm Sub-Mini (Remote) Control
1x USB-C (Ethernet, UVC 1.5) (Shared with Power Input)
1x DIN 1.0/2.3 (Timecode) Input/Output
1x Proprietary
|
| Wireless |
Wi-Fi / 2.4 GHz Radio/RF / 5.8 GHz Radio/RF
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Canon App
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |
Articulating 3" Touchscreen LCD
|
Power
| Battery |
Canon LP-E6, Canon LP-E6NH
|
Environmental
| Operating Conditions |
23 to 113°F / -5 to 45°C at 60 to 85% Humidity
|
General
| Shoe Mount |
1x Intelligent Hot Shoe
|
| Accessory Mounting Thread |
1x 1/4"-20
|
| Dimensions (W x H x D) |
5.6 x 3.5 x 3.7" / 143 x 88 x 95 mm
8.7 x 9.4 x 7.3" / 222 x 239 x 186 mm (With Handle, Mic Holder)
|
| Weight |
23.5 oz / 665 g (Body Only)
|
